Every dimension, on the record.

The Apex WalkIn MRI brings together the mobility of a trailer with the comfort, workflow and serviceability of modular and hybrid units. Below is the full specification — dimensions, rooms, electrical design, transport systems and how it compares with conventional trailer, modular and hybrid units.

Request a Demo Walkthrough Request a quote

Interior of the Apex WalkIn MRI scan room

Gallery

The unit, outside and in.

Select any image to view it full screen.

Apex WalkIn MRI trailer sited outside a hospital, with staff walking to the step-free entrance — Sited and readyA level surface is enough. No crane, no foundation, no building permit.

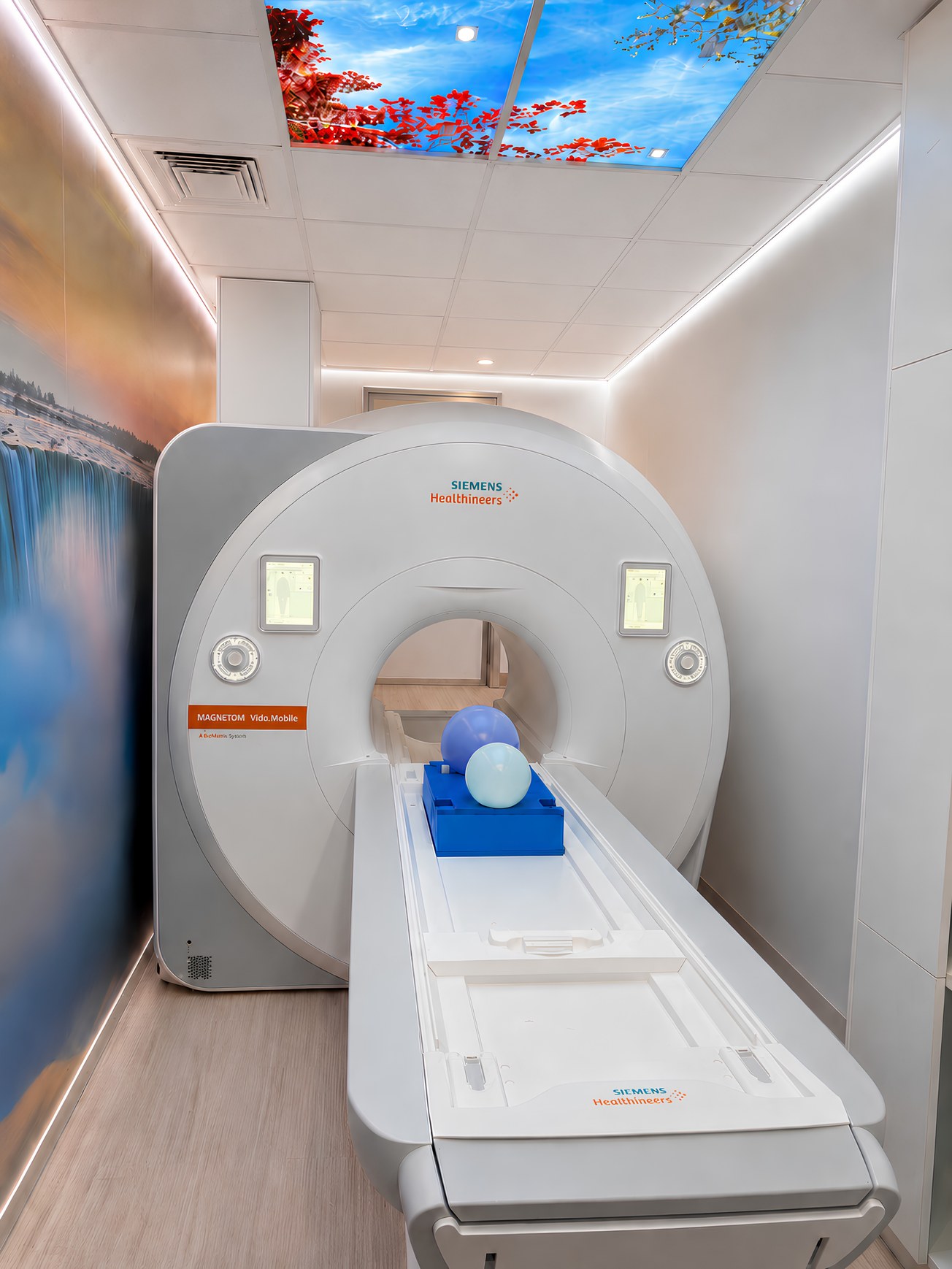

Apex WalkIn MRI scan room with the scanner, patient table and full-height ceiling with a lit skylight — Scan roomFull 110" ceiling throughout, with an LED skylight above the patient table.

Double sliding entrance doors of the Apex WalkIn MRI trailer open at the step-free entrance — Step-free entrance52" double sliding doors, 10" from the ground. No lift cycle, no transfer.

Rear view of the Apex WalkIn MRI trailer with the cable door open and the shore power cable running out, plus the rear technical room door and scene light with CCTV — Cable doorShore power cable on a 75 ft reel, stowed behind its own door.

Rear of the Apex WalkIn MRI trailer showing the chiller, generator, hydraulic landing gear, landing gear controls and hydraulic tank and motor — Rear technical endChiller, generator, hydraulic landing gear and its controls.

Drawings

Layout, cable reel and technical rooms.

Drawings and detail pages from our engineering set. Select any one to view it full screen.

Top view layout drawing of the Apex WalkIn MRI trailer showing the front room, control room, scan room and rear room with dimensions, a desk for two techs, sink with hot water and humidifier — Layout — top viewFront room, control room, scan room and rear room, with the dimensioned drawing underneath: desk for two techs, sink with hot water, humidifier.

Labelled exterior side view of the Apex WalkIn MRI trailer with quench line, scene lights and CCTV, rear service door, near-ground entry with bus-style wide doors, hydraulic stands, auto inflate and deflate suspension, fuel tank, genset and chiller — Exterior, labelledEverything on the outside, called out. Overall 57’ x 8.5’ x 13.5’.

Front and rear elevation drawings of the Apex WalkIn MRI trailer with dimensions — Front and rear viewsElevation drawings of both ends of the unit.

Rear technical room drawing showing the fire suppression tank, chiller, siemens cooling cabinet, MRI room register, door gasket, cable entry port and dimensions — Rear technical roomFire suppression tank, cooling cabinet, chiller, door gasket and the cable entry port, with room dimensions.

The difference, in pictures

What the other formats ask of you.

Reference images of conventional trailer and modular imaging units, next to what the Apex WalkIn MRI replaces them with: a 10" step-free entrance, a standard truck move and a level surface.

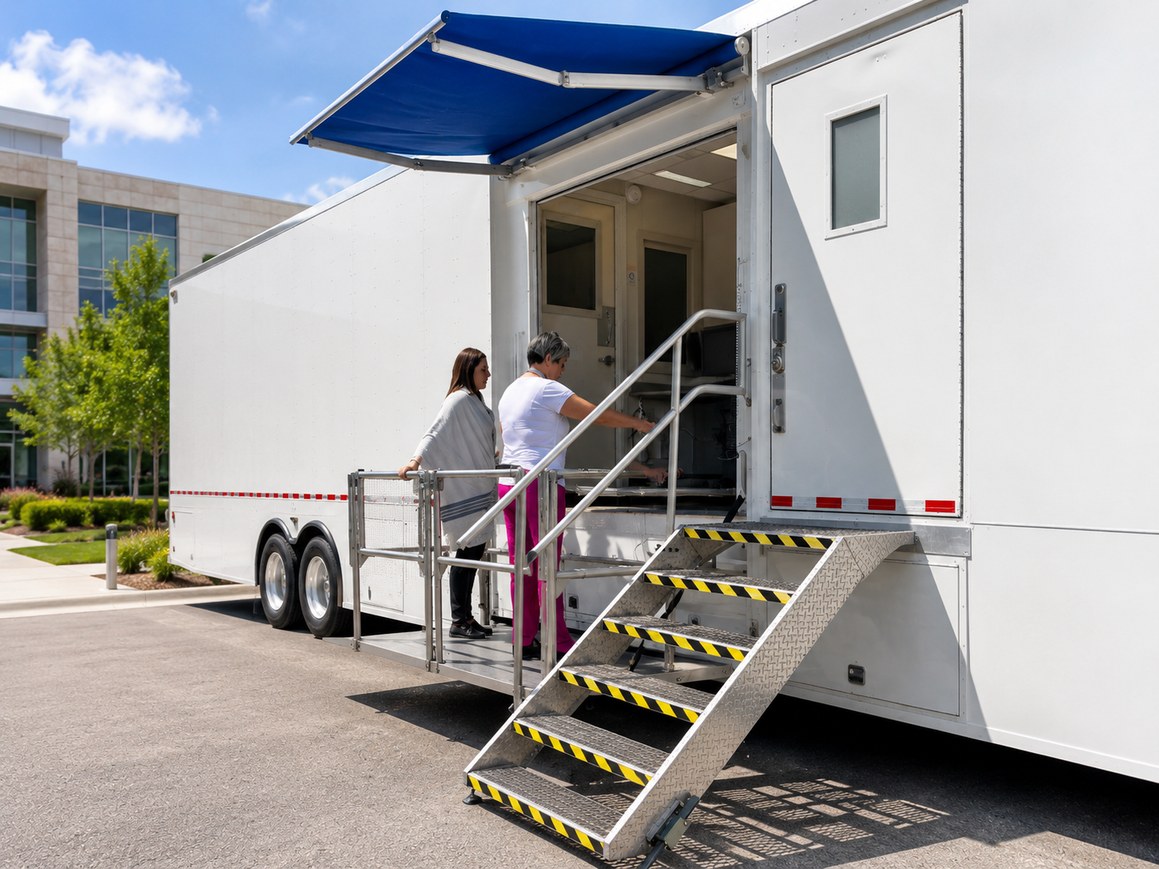

Patients climbing an external staircase to enter a conventional mobile MRI trailer — Conventional trailerEntry is around 60" up: an external staircase, or a lift cycle for every seated or stretcher patient.

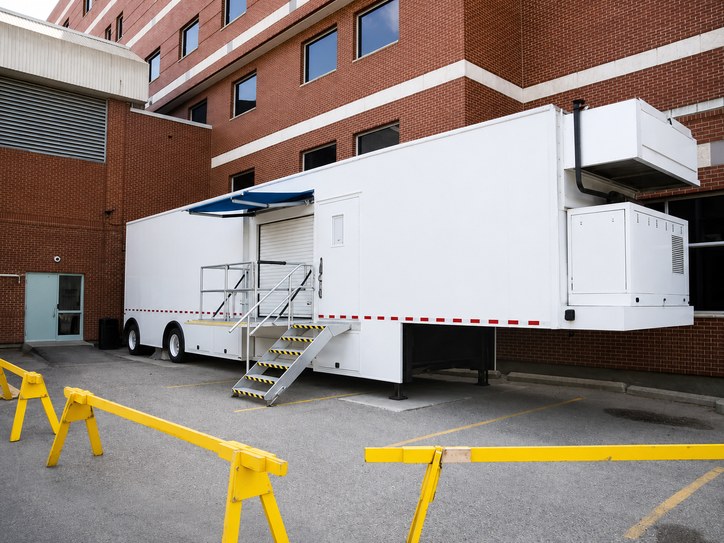

Conventional mobile MRI trailer parked beside a hospital with its staircase and canopy deployed — Conventional trailer, sitedStairs, canopy and a raised deck take up space alongside the unit at every site.

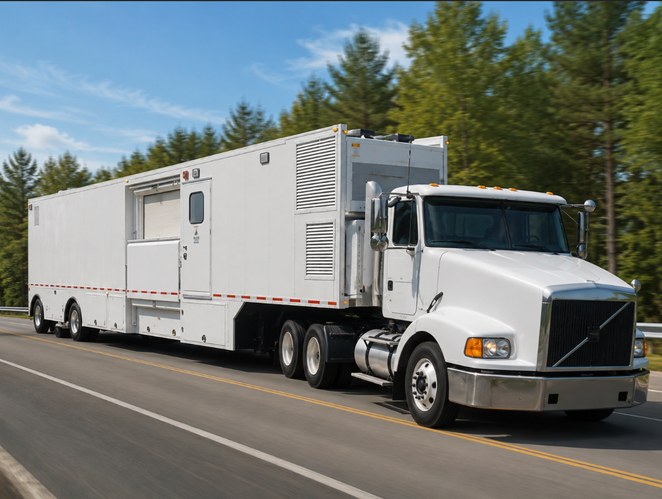

Conventional mobile MRI trailer being towed on a highway by a tractor unit — Conventional trailer, movingMoves on standard truck, which is the one thing the trailer format gets right.

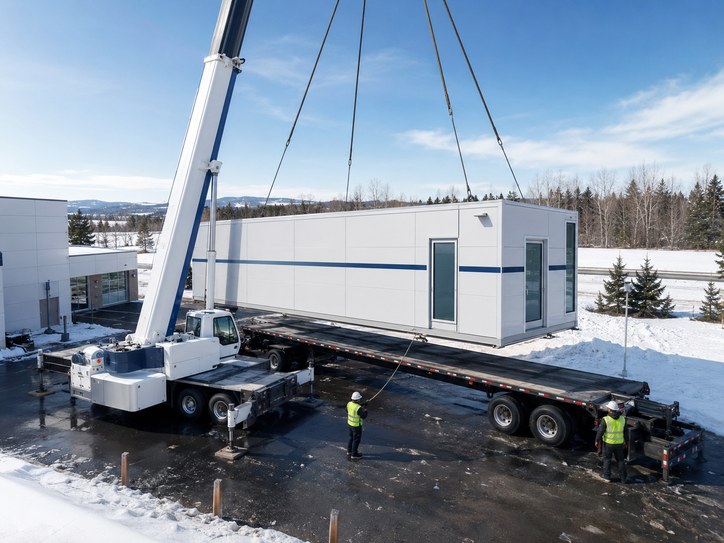

Crane lifting a modular imaging building from a trailer onto a prepared site — Modular unitComfortable inside, but placing it needs a crane and a lifting crew.

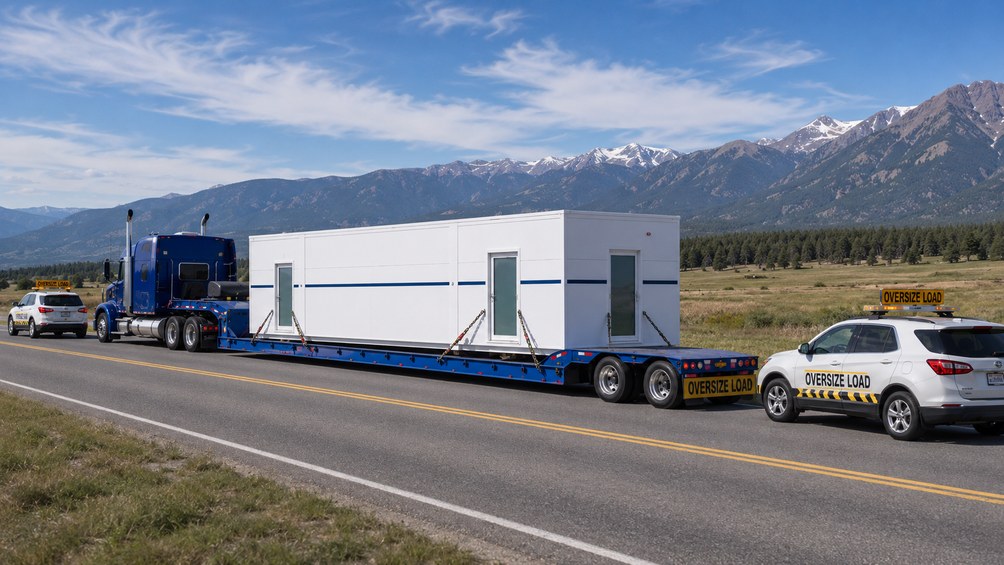

Modular imaging building being transported on a lowboy trailer along a highway — Modular unit, in transitOversize transport on a lowboy, not a standard truck move.

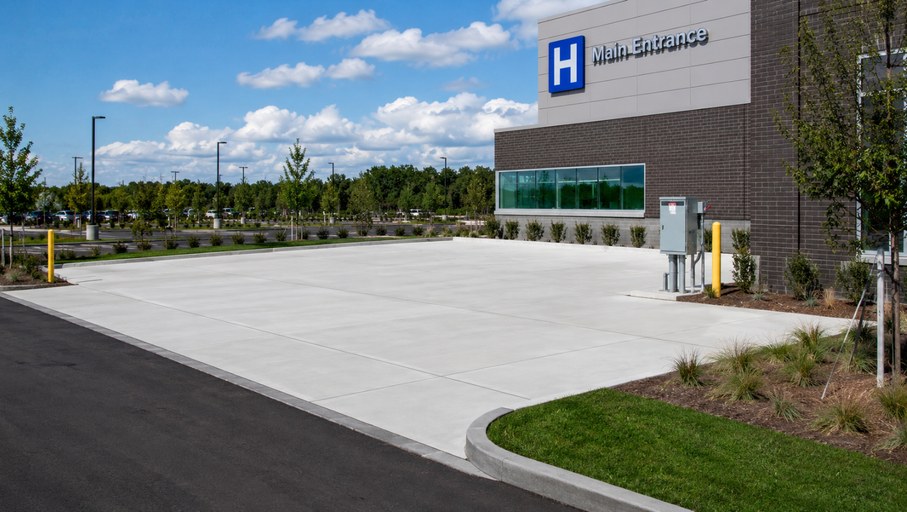

Prepared concrete pad and utility connections outside a hospital main entrance — Site worksModular and hybrid units expect a poured pad and permitted site works before arrival.

Apex WalkIn MRI

Ten inches from the ground, 52" double sliding doors, standard truck delivery. No Lift, no crane, no foundation, no building permit.

At a glance

The trailer, in numbers.

Overall dimensions: 57' × 8.5' × 13.5'
Patient entry: 10" from the ground
Entrance doors: Double sliding, 52" clear opening
Internal ceiling height: 110"
Scan room width: 92.5"
Layout: Four rooms
On-board water: Sink with hot and cold water
Shore power: 75 ft cable on a reel
Electrical: 600V to 480V on board

Internal space

Room to work, room to breathe.

Swipe the table sideways to see both columns.

Feature	Apex WalkIn MRI	Conventional trailer
Ceiling height	110"	89" – 91"
MRI room width	92.5"	87"
Patient comfort	Spacious scan environment with a complete ceiling throughout the room	More enclosed scan environment; the ceiling ends where the MRI begins
MRI service	All service can be completed without opening a roof hatch	Some service procedures require opening a roof hatch
Patient entry	Step-free near-ground entry, no lift required	55" – 60" off the ground; single door 41" wide plus a patient lift and roll door

Layout

Four rooms, front to rear.

Front room

Electrical section: transformers, breakers, control panel, automatic transfer switch, batteries
Staff area and cabinets
Sink with hot and cold water
Humidifier
Supply and wastewater tanks, pumps and heater

Control room

Full glass RF door — the first trailer to feature one
Glass sliding entrance doors bringing daylight into the control room while keeping patient privacy
Changing area with bench, privacy curtain and secure storage for personal items
Storage cabinets, with overhead cabinets housing scanner, data and phone equipment
Trailer monitoring and alarms: HVAC, fire system, trailer status, CCTV and shock monitoring

Scan room

Cabinets for coil, phantom and accessory storage
Transport bracket and wiring for a contrast injector
LED skylights with RGB perimeter lighting
Roof hatch for future MRI replacement

Rear technical room

MRI electrical cabinets, filter panel and rear entry to the scan room
MRI cooling cabinet and MRI UPS
Fire suppression tank and fire panel
Shock logger alarm
Hospital connections: phone, data, fire, code blue and code red
Shore power plug, cable reel and cable entry flap

Electrical

Electrical inside, not underneath.

Apex houses the electrical section in its own part of the front room, rather than in a belly box beneath the trailer body.

Apex front room

Where the equipment livesInside the front room, in a separate section
Service accessFrom the control room — indoor service, easy access
Canadian powerOn-board 600V to 480V transformer; the site provides only a 600V plug and disconnect panel
Operating voltageOperates from both 600V and 480V

Belly box compartment

Where the equipment livesIn a belly compartment underneath the trailer body
Service accessOnly from outside; service requires crouching, exposed to the weather
Canadian powerNo room for the Canada-required transformer; each site buys a standalone 600V to 480V unit
Operating voltage480V only

Shore power

A cable reel, not a loose cable.

Apex stores the 75 ft shore power cable on a reel with a drip pan underneath.

Apex cable reel

Remote-controlled spooling
Manual unspooling with adjustable tension
Cable and plug securely stowed during transport
Drip pan underneath the reel

Cable stored loose in the belly

Manual pulling out and stowing of a heavy cable with a large plug
Rubbing on the edge of belly doors damages rubber gaskets over time
Cable and plug stowed loose in the belly compartment
Grime, snow and water from the cable enter the belly compartment

Transport

Warning lights the driver can read.

Visible in the driver's mirror. All green means the unit is OK to move; anything red means it cannot move until the fault is cleared.

Run flat engaged: On when the tires are automatically inflating or deflating.
Transport ready: Green when all doors are closed, suspension is at ride height and pressure is OK.
MRI ready: Green when the air bladder compressor is on.
MRI cooling OK: Green when the cooling cabinet reports no errors and cryo is working.
Batteries charging: Green when the 12V battery system is charging.
Fuel level OK: Green when fuel level is OK.
Low brake pressure: Red on low brake pressure.
Shore power connected: Green when the 75 ft shore power cable is plugged in and the site supply is live.
Cable reel stowed: Green when the shore power cable is fully reeled in and stowed for transport.

Overview

Apex, trailer, modular, hybrid.

Swipe the table sideways to see all four columns.

Requirement	Apex WalkIn MRI	Trailer	Modular	Hybrid
Transport permit	None	None	Oversize transport permit required	Oversize transport permit required
Transport method	Standard truck	Standard truck	Specialized flatbed required	Specialized flatbed required
Crane	Not required	Not required	Crane required	Not required — self-loading and unloading
Pad or foundation	Level surface	Level surface	Foundation, pad or groundwork — permit likely	Foundation, pad or groundwork — permit likely
Magnet during transport	On field during transport	On field during transport	May need to be ramped down or removed	May need to be ramped down or removed
Entry height	Near-ground entry, no lift required	54" off the ground; requires lift and stairs	Near-ground entry, 10" – 15" off the ground	Near-ground entry, 10" – 15" off the ground
Internal ceiling height	110"	89" – 91"	95"	95"
Serviceability	Higher ceiling and layout allow improved service access	Restricted by layout and internal height and width	Hospital equivalent, due to increased width	Hospital equivalent, due to increased width
Site maneuvering	Enough space for trailer and truck positioning	Enough space for trailer and truck positioning	Space for truck, trailer, crane and counterweights	Enough space for trailer and truck positioning
