Press
Press kit.
Everything needed to write about the Apex WalkIn MRI — the first walk-in MRI trailer. The ZIP holds a read-me, the fact sheet, the nine-page brochure and the entry height comparison, plus nine photographs, six drawings and the logo files in labelled folders.
Fact sheet
The unit, in figures.
- Patient entry
- 10" from the ground, step-free

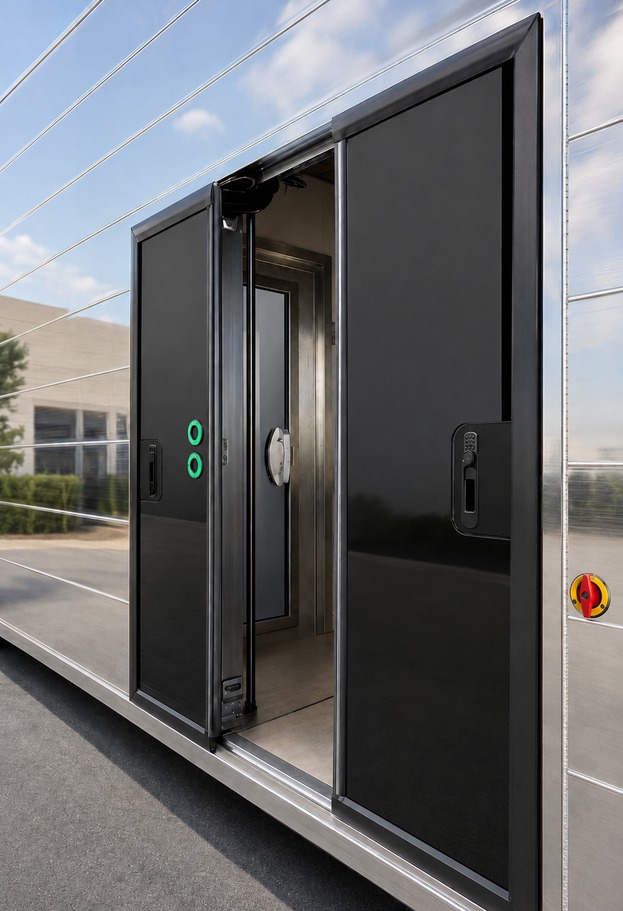

- Entrance doors
- Double sliding, 52" clear opening
- Overall dimensions
- 57' × 8.5' × 13.5'
- Internal ceiling height
- 110" throughout the scan room
- Scan room width
- 92.5"

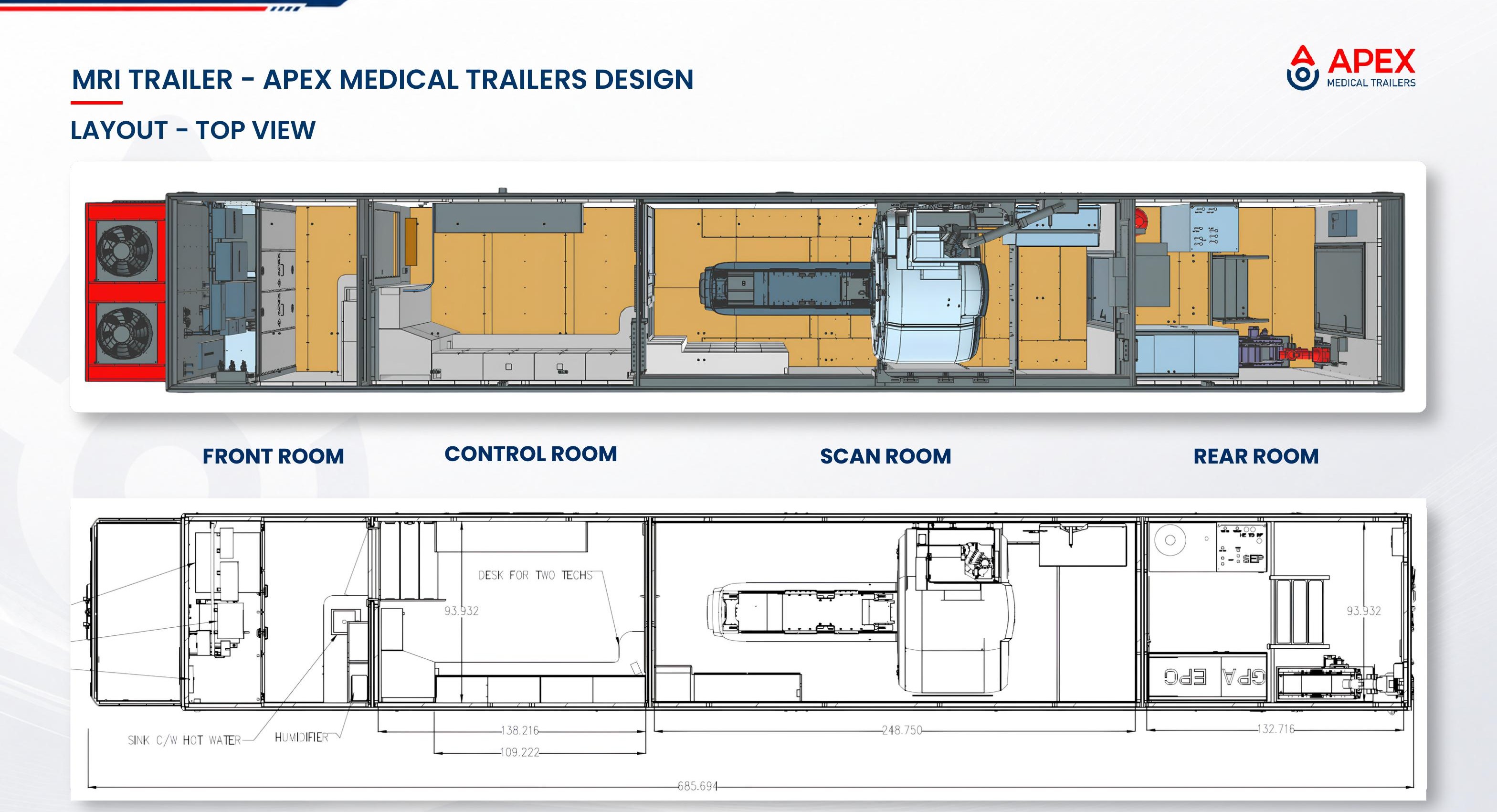

- Layout
- Four rooms, including a front room with a sink

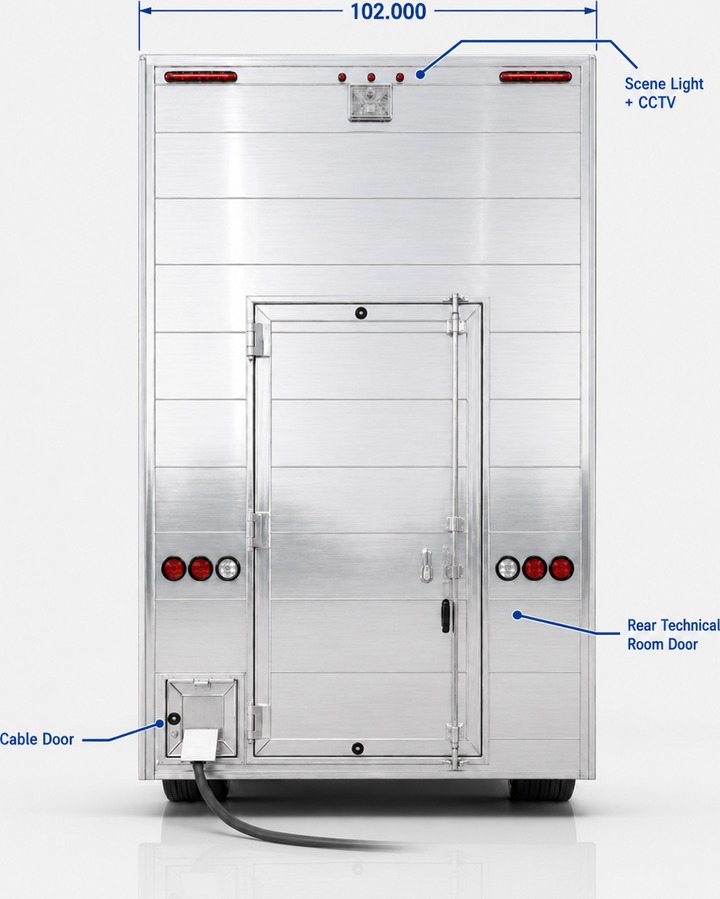

- Shore power
- 75 ft cable on a remote-controlled reel
- Electrical
- On-board 600V to 480V transformer
- Siting
- No crane, no foundation, no building permit
- Delivery
- Standard truck, deployment in days
- Scanner
- Designed for Siemens MAGNETOM mobile MRI systems
- Magnet
- Stays on field between sites, no ramp-down cycle

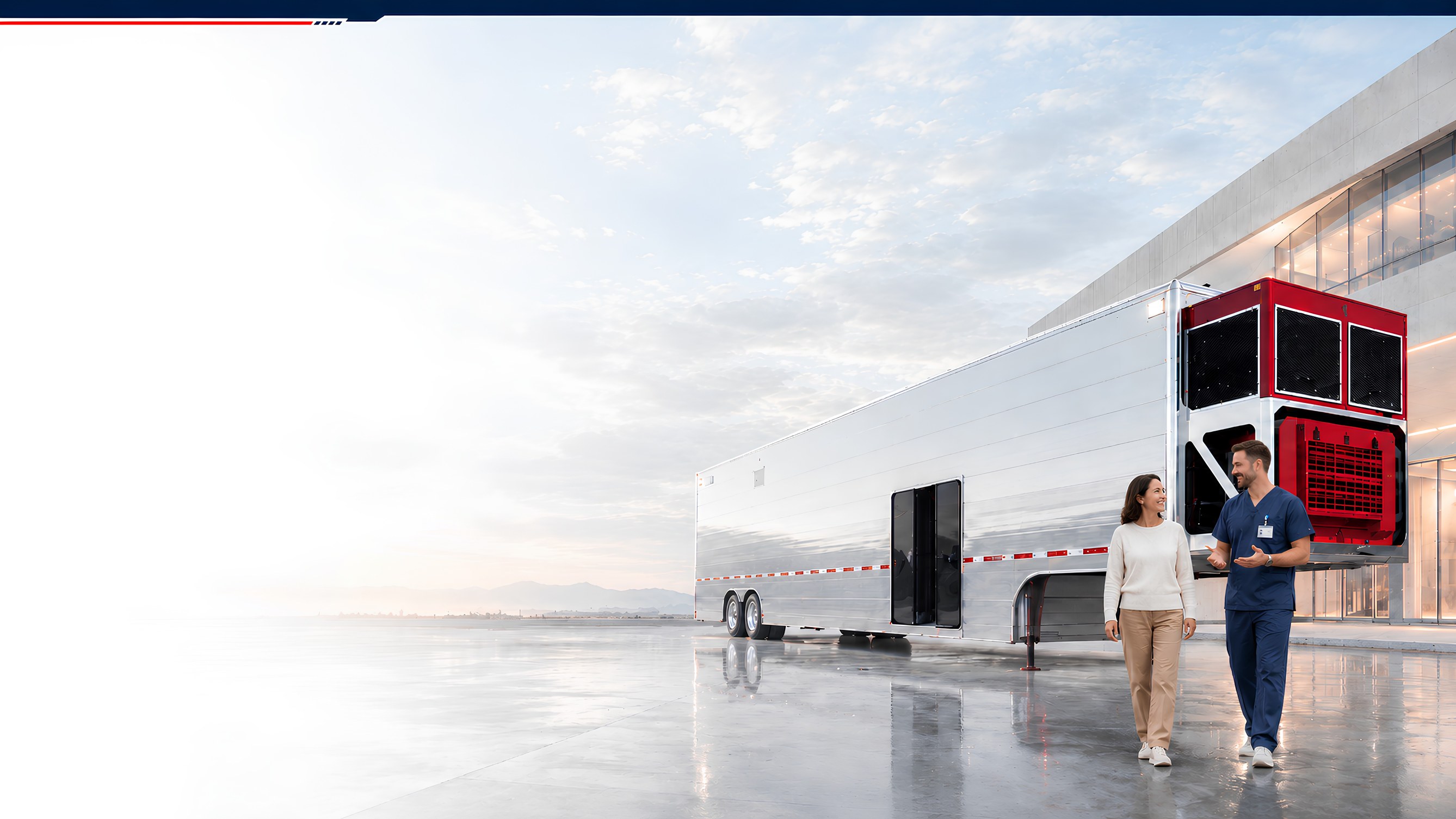

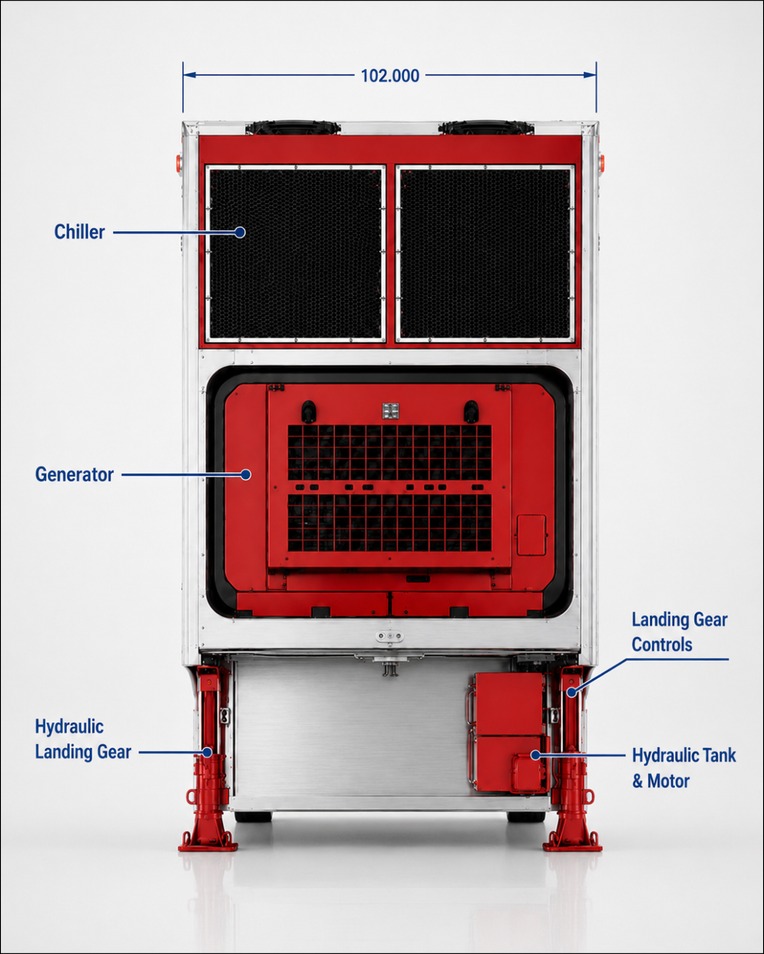

Photography
The trailer, inside and out.
Full-size files are in the press kit ZIP.

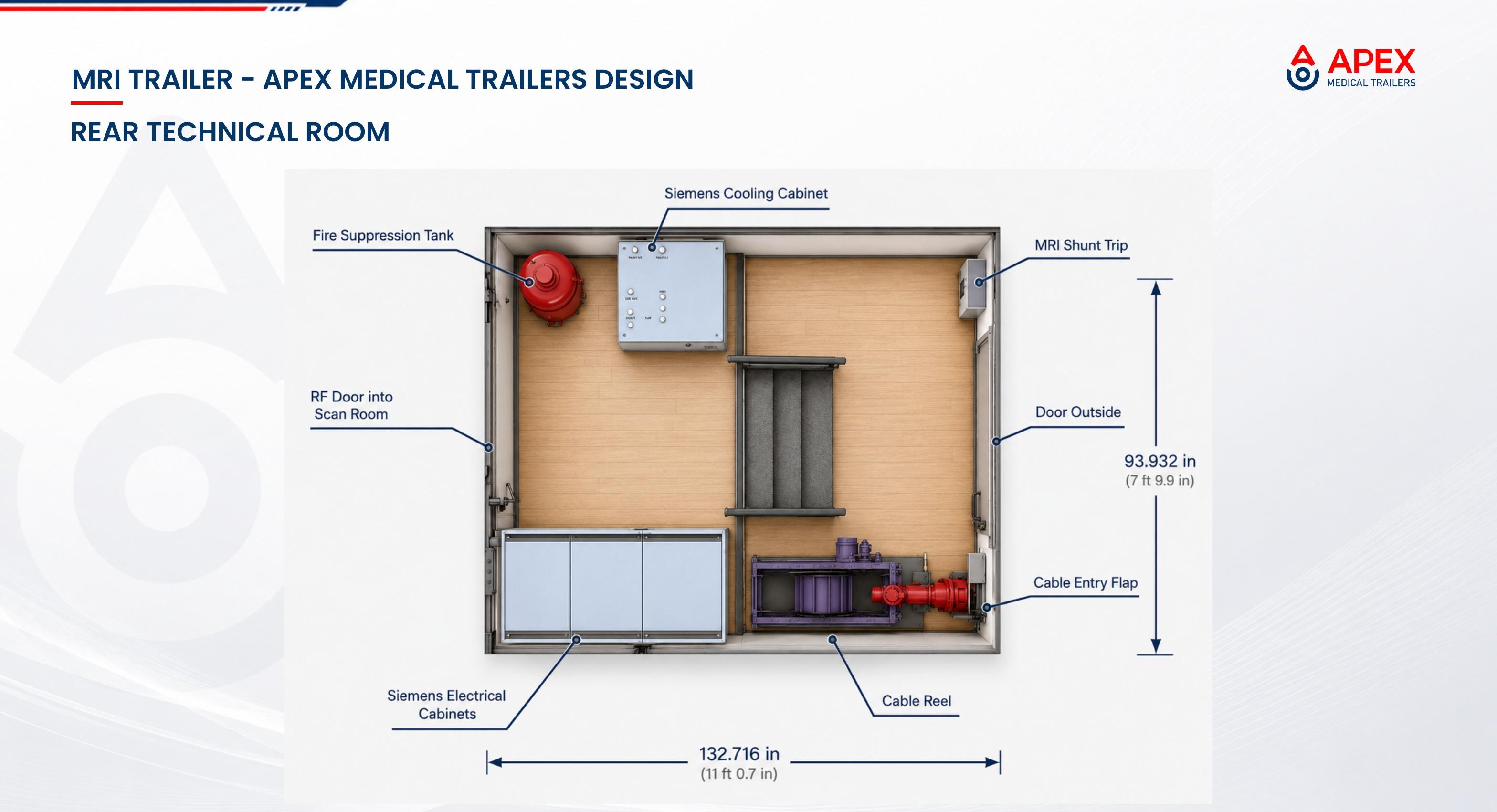

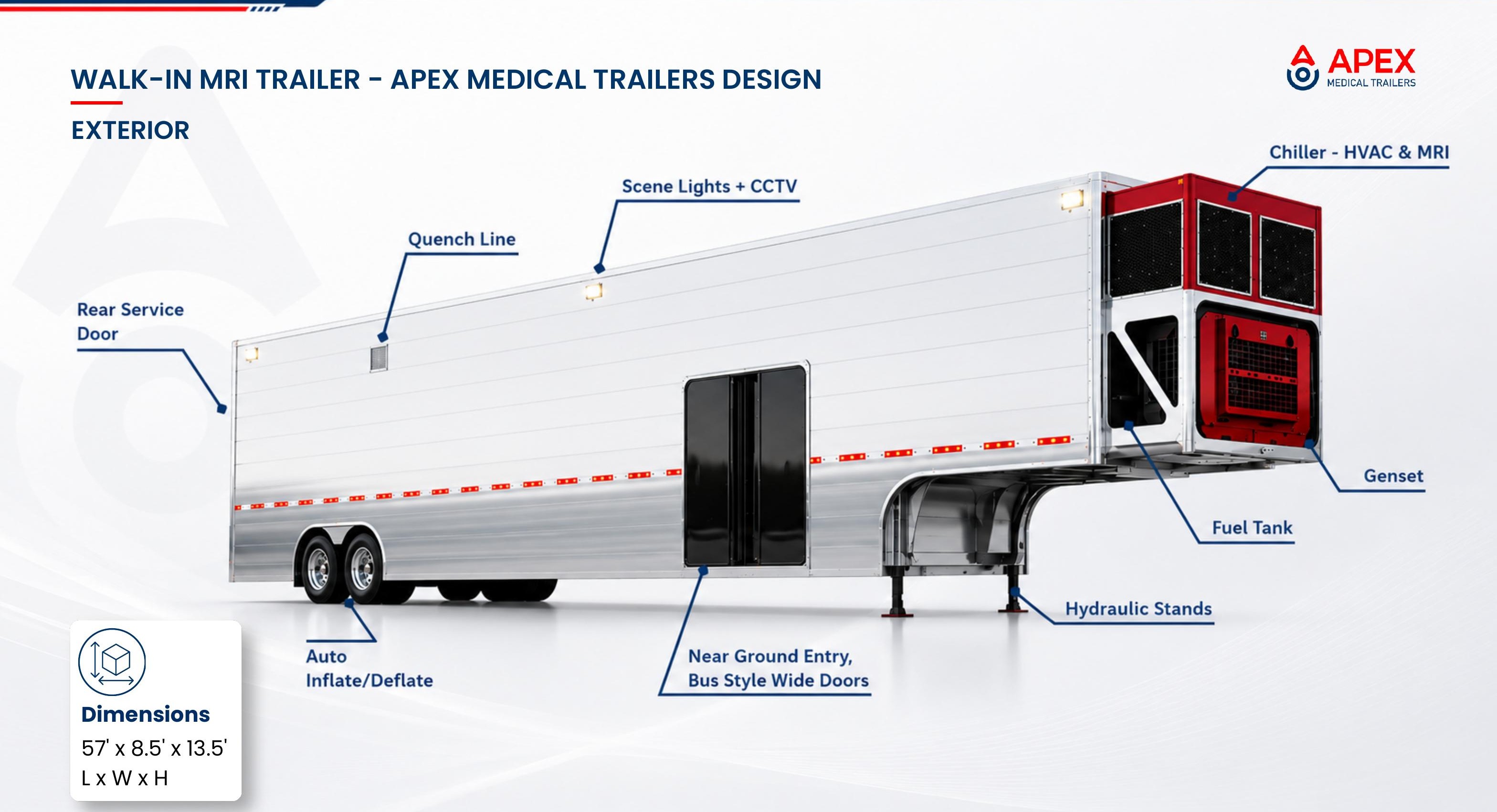

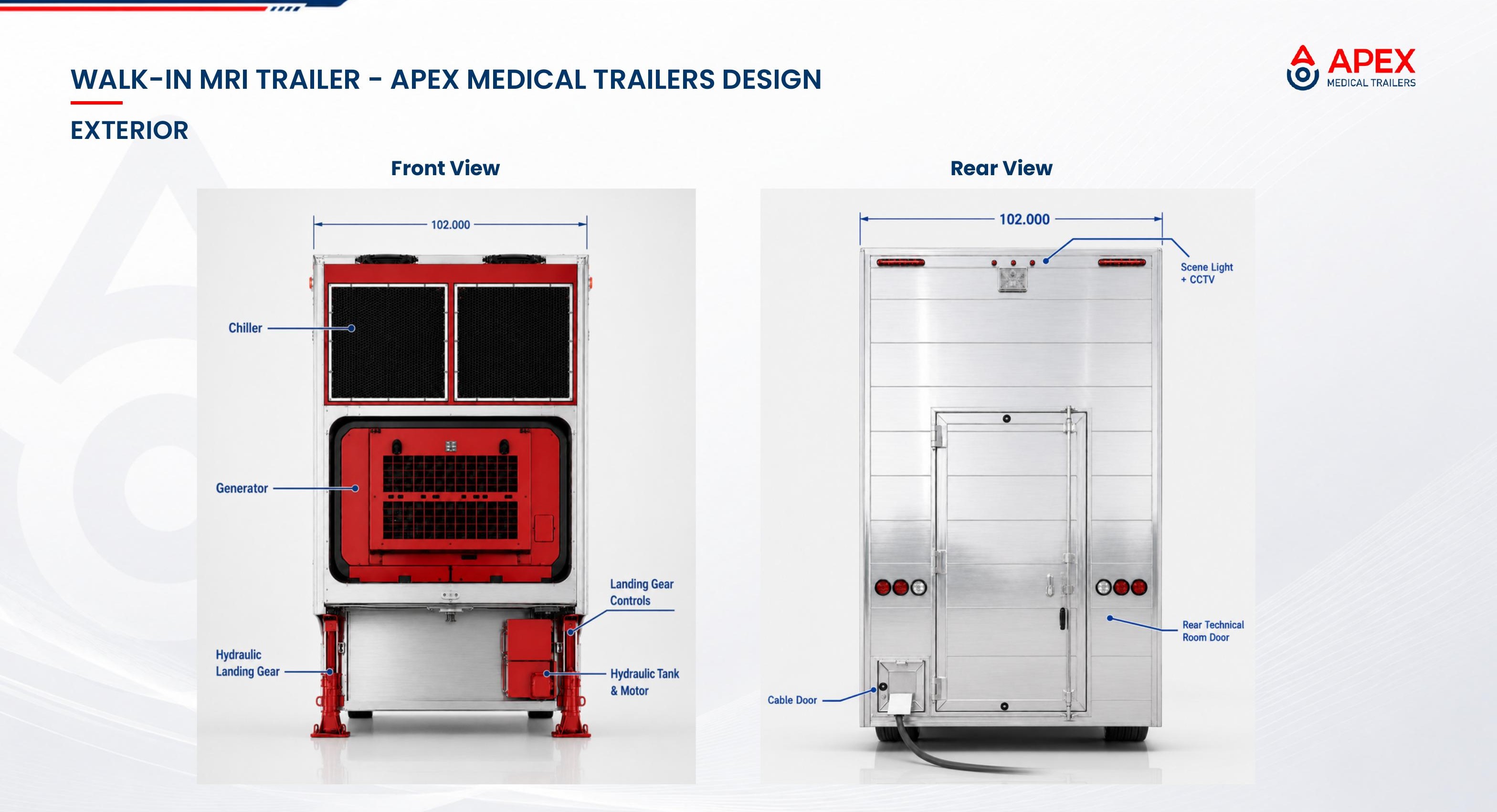

Drawings
Layout and technical views.
Brand
Logo files.
Please use the logo as supplied — no recolouring, cropping or distortion.
Boilerplate
About Apex Medical Trailers.
Apex Medical Trailers designs, produces, sells and rents mobile medical imaging trailers from Toronto, Ontario, serving Canada and the United States. Its flagship unit, the Apex WalkIn MRI, is the first walk-in MRI trailer: patients and stretchers enter at 10 inches from the ground through 52-inch double sliding doors, with no stairs and no wheelchair or stretcher lift. The unit is delivered by standard truck and sited without a crane, foundation or building permit. The Apex WalkIn CT and Apex WalkIn PET-CT are coming soon.
Media enquiries.
For interviews, additional imagery or a walkthrough of the unit in Toronto.
Press desk
Ask us a question.
Questions about the trailer, the walk-in entrance or the programs — send them here and we will come back to you.
